300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty

Product Categories
Shenzhen Keysun Technology Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

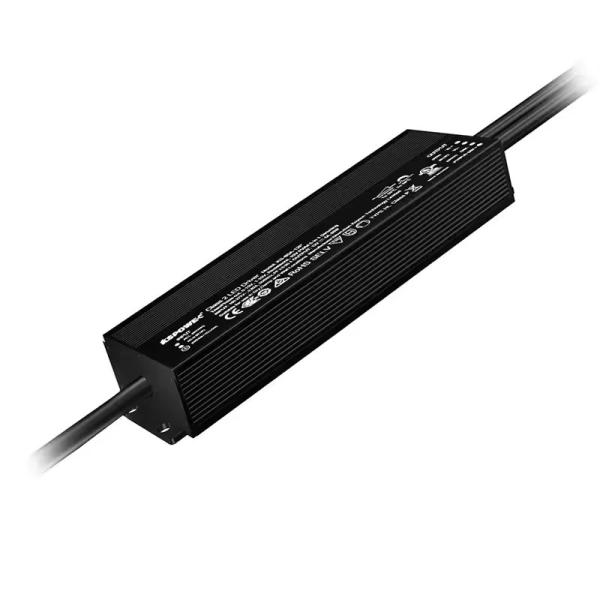

300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty

Place of Origin : Guangdong, China

Brand Name : KSPOWER

Certification : UL FCC CE ROHS SAA CLASS P etc.

MOQ : 2 pieces

Price : $1.09-32.90/pieces

Model Number : KS-300A-24P

Payment Terms : T/T

Supply Ability : 300000/monthly

Delivery Time : 20-25 days

Packaging Details : Brown box and Carton

Warranty(Year) : 5-Year

Lighting solutions service : Lighting and circuitry design

Output Power : 60-320W

Output Type : PWM

Input Voltage : 100-277V

Output Frequency : 50/60Hz

Product Name : led waterproof driver

Application : LED Strip Light,Pendants, Linears,Cove Lights

Material : Aluminum Case

Warranty : 5 years

Protection : OCP, OVP, SCP, OTP

IP Rate : IP65

Efficiency : ≥90%

Power : 60-320W

Output : 12V 24V 36V 48V

Contact Now

12V 24V 36V 48V 120W Class P driver, 0/1-10V, 10V PWM, Resistance dimming 4 in 1 dimmable LED driver is constant voltage solution, and the perfect choice for under cabinet lighting and other residential and commercial lighting fixture

Applications

300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty

Products Description
12V 24V 36V 48V 120W
12 12.0 24 24.0 36 36.0 48 48.0 V Vdc Volt Volts 12.0V 24.0V 36.0V 48.0V 12volts 24volts 36volts 48volts 12vdc 24vdc 36vdc 48vdc 120 W Watt Watts 120Watt 120Watts
KS-300W is a versatile 300W 5-in-1 universal dimming driver that accepts 100-277VAC input voltage and provides 12V 24V 36V 48V constant voltage output. KS-300W delivers flicker free dimming to 0% on all dimming systems including 0-10V, 1-10V,Triac-Phase cut, PWM, Resistance, MLV, ELV and Incandescent. The high efficiency of the driver and sophisticated overload protection enables the electronics to run cooler and significantly improve reliability while extending product life.
The compact metal case is dry/damp location listed and IP65 rated, making it suitable for a wide range of indoor/outdoor architectural, commercial, industrial, and residential lighting applications. KS-300W is available with or without integrated junction boxes on both the input and output side that have two knockouts each.


300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty

Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: PWM,0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP65 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service

Dimming Type Series Power Model
(xx=output voltage)		 Output voltage&
Output current		 Input voltage Size
12V 24V 36V 48V
5 in 1 dimming HPJ 40W KS-40AW-xxP 3.3A 1.67A 1.11A 0.83A 100~277V
50/60Hz		 297*58*36mm
60W KS-60AW-xxP 5A 2.5A 1.67A 1.25A
80W KS-80AW-xxP 6.67A 3.33A 2.22A 1.67A
96W KS-96AW-24P / 4A / / 322*58*36mm
100W KS-100AW-xxP 8.33A 4.16A 2.78A 2.08A
120W KS-120AW-xxP 10A 5A 3.33A 2.5A
150W KS-150AW-xxP 12.5A 6.25A 4.16A 3.13A
180W KS-180AW-12P 15A / / / 343*68*41mm
200W KS-200AW-xxP 16.66A 8.33A 5.55A 4.16A
240W KS-240AW-xxP 20A 10A 6.66A 5A 367*68*41mm
300W KS-300AW-24P / 12.5A / /
320W KS-320AW-xxP / 13.33A 8.88A 6.66A
